CCL Copper Sheet Metal Roll For CCL Copper Clad Laminate Red Color

CCL Copper Sheet Metal Roll For CCL Copper Clad Laminate Red Color

CCL Copper Sheet Metal Roll For CCL Copper Clad Laminate Red Color
CCL Copper Sheet Metal Roll For CCL Copper Clad Laminate Red Color

Büyük resim :  CCL Copper Sheet Metal Roll For CCL Copper Clad Laminate Red Color En iyi fiyat

Ürün ayrıntıları:

Place of Origin: CHINA
Marka adı: ED-JIMA
Sertifika: SGS, ISO,Reach, RoHS
Model Number: EDCCL

Ödeme & teslimat koşulları:

Minimum Order Quantity: 100kgs
Fiyat: USD13~18/kgs
Packaging Details: wooden box
Delivery Time: 7-16days
Payment Terms: T/T, L/C
Supply Ability: 1300 per month
Detaylı ürün tanımı
Thickness: 6um,7um,8um,9um,12um, Standard: IPC-4562 and IPC-TM-650
Peel strength: above1.7kg/cm Weight range: 150~50kgs ,or custom
color: red application: MCCL,CCL
Vurgulamak:

thin copper sheet

,

conductive copper foil

Product Description

Type 12micron CCL used thin electrolytic copper foil for CCL Copper Clad Laminate
Thickness Range 1/3oz/ft²to 2oz/ft²(nominal thickness 12μm~70μm)
Width Range 550~1295mm,Max width is 1380mm,or custom
Performance The perfect normal temperature storage performance
The high temperature anti-oxidization performance
The high temperature elongation performance
Quality standard

standard IPC-4562,IPC-TM-650

Length Range 500~5000meter,or custom

Inter diameter

76 mm,152 mm, 3 inch,6 inch
Grade
Pure Copper
Cu Content: above 99.8%

thin electrolytic copper foil ​​of Features:

3. Good etch ability

4. Excellent adhesion to etching resist

5. Anti foil cracking by high elongation at elevated temperature

6. Eco-friendly products and processes

7. High temperature elongation

​8. high peel strength

​9. High thermal endurance

​10. The treated foil in gray or red



Application for thin electrolytic copper foil

1. PCB board,pcb

3. pcb antennas

​4. Copper Clad Laminate

6. CCL



Copper Foil Producing Process:

CCL Copper Sheet Metal Roll For CCL Copper Clad Laminate Red Color 0

CCL Copper Sheet Metal Roll For CCL Copper Clad Laminate Red Color 1

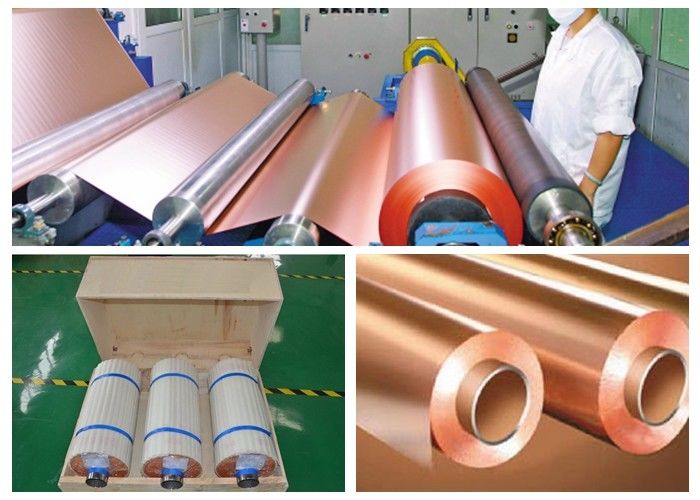

Electrolytic copper foil shows:

CCL Copper Sheet Metal Roll For CCL Copper Clad Laminate Red Color 2

Mill Test Certificate of High temperature elongation ED copper foil

Thickness um 12 18 35 70

IPC-TM-650

2.3.12

Area weight g/m² 107±10 153±15 305±30 610±61

IPC-TM-650

2.2.12

Roughness (RA) μm <0.43 <0.43 <0.43 <0.43

IPC-TM-650

2.2.17

(RZ) μm <7 <8.0 <10.0 <14



Copper≥

% Above99.8

IPC 4562

2.3.15

Tensile Strength State normal kg/mm2 >21 >21 >28 >28

IPC 4562

2.4.18

State temper (180℃)   >15 >15 >15 >15
ElongationI state normal % >3.0 >4 >5 >5

IPC 4562

2.4.18

state temper (180℃) % >2 >2 >3 >3
Peel strength kg/cm >1.1 >1.3 >1.7 >1.9

IPC 4562

2.4.8



High temperature oxidation resistance(225℃,

10min)

No color change CCP Standard
Solderability Good CCP Standard
Splice ≤2 CCP Standard

Remark:

1.Standard Width is1295(±1)mm,Max width is 1380mm,May according to the customer request tailor.

RFQ:
Q1: What's your guarantee?
A: All our products have 6 months guarantee after received goods, if any quality problem can contact us.

Q2: What's your delivery time ?
A: The common delivery time is 5-30working days. The specific delivery time depends on the items and the quantity of your order.

Q3. Can you cut into small size?
Yes, we can.

Q6. Can we come to China visit factory ?
Yes ,you can .

Q8: Can you supply the sample?
A: We can supply samples to check the quality before bulk order. But the price will be sample price not wholesale price.or we also provide A4 Sample

Q9. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
