Electromagnetic Copper Shielding Foil Max Width 1360mm High Peel Strength

Electromagnetic Copper Shielding Foil Max Width 1360mm High Peel Strength

Electromagnetic Copper Shielding Foil Max Width 1360mm High Peel Strength
Electromagnetic Copper Shielding Foil Max Width 1360mm High Peel Strength

Büyük resim :  Electromagnetic Copper Shielding Foil Max Width 1360mm High Peel Strength En iyi fiyat

Ürün ayrıntıları:

Place of Origin: china.Shanghai
Marka adı: JIMA
Sertifika: SGS, ISO,Reach, RoHS
Model Number: EDSHE

Ödeme & teslimat koşulları:

Minimum Order Quantity: 100kg
Fiyat: usd 15-20 kg
Packaging Details: wooden carton
Delivery Time: 5-15 days
Supply Ability: 1000 Ton per month
Detaylı ürün tanımı
Purity: above 99.8% Thickness: 3oz,105um,105micron,0.105mm
Surface treatment: side raw + one side polished Splice: under 2
application: Shielding cooper foil max width: 1360mm,1290mm,1380mm
Vurgulamak:

adhesive copper foil

,

copper shielding tape





Max width 1360mm Shielding Electromagnetic electrodeposited electrolytic ED copper foil 105mic for Shielding application





Features 1. the treated foil in gray or red
  2.High peel strength
  3.Good etch ability
  4. Excellent adhesion to etching resist
Max width 1360mm,1290mm,1380mm
Thickness 105um,105micron,3oz,0.105mm
Internal Diameter 76/152,or custom
Length per roll 500-5000meter
Standard IPC 4562,IPC-TM-650



  1.Phenolic resin board
Application: 2.Epoxy board
  3.shielding copper foil





MTC of Shielding Electromagnetic Copper Foil

Classification

Unit Requirement Test Method
Foil Designation / T H M 1 2 3 IPC-4562A
Nominal thickness / 12um 1/2 OZ 3/4 OZ

1

OZ

2

OZ

3

OZ

IPC-4562A
Area Weight g/㎡ 107±4 153±5 228±8 285±10 580±15 860±20

IPC-TM-650

2.2.12.2

Purity ≥99.8

IPC-TM-650

2.3.15

Foil Profile Shiny side (Ra) սm ≤0.4 ≤0.4 ≤0.4 ≤0.4 ≤0.4 ≤0.4

IPC-TM-650

2.3.17

Matte side(Rz) um ≤6 ≤8 ≤10 ≤10 ≤15 ≤20
Tensile Strength

R.T.(23℃)



Mpa ≥150 ≥220 ≥235 ≥280 ≥280 ≥280

IPC-TM-650

2.3.18

Elongation

R.T.(23℃)



≥2 ≥3 ≥3 ≥4 ≥4 ≥4

IPC-TM-650

2.3.18

Subject Ω.g/㎡ ≤0.170 ≤0.166 ≤0.162 ≤0.162 ≤0.162 ≤0.162

IPC-TM-650

2.5.14

Peel Strength(FR-4) N/mm ≥1.0 ≥1.3 ≥1.6 ≥1.6 ≥2.1 ≥2.1

IPC-TM-650

2.4.8

Pinholes&porosity Number No

IPC-TM-650

2.1.2

Anti-oxidization R.T.(23℃) day 180 /
H.T.(200℃) Minutes 60

1.Standard Width,1295(±1)mm,Max width is 1380mm,May according to the customer request tailor.

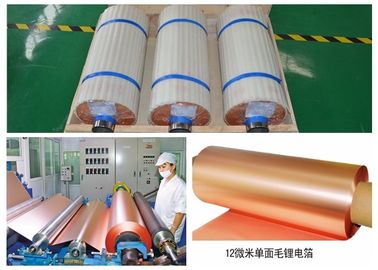

​Packing and Mark of Electromagnetic Shielding copper foil :


FAQ:
Q1: What's your guarantee?
A: All our products have 6 months guarantee after received goods, if any quality problem can contact us.
Q2: What's your delivery time ?
A: The common delivery time is 5-35 working days. The specific delivery time depends on the items and the quantity of your order.
Q3: What's your minimum order quantity?
A: The MOQ is 150 kg.
Q4: Can you supply the sample?
A: We can supply samples to check the quality before bulk order. But the price will be sample price not wholesale price.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q6. what is your standard width and Max width?
A: 1290mm and 1380mm,we accept customization for the width. we can cut it into any size  as per your request.
Q9.Are the package suitable For export ?
Yes , it is suitable for export.
Q11. Can you provide COA?
Yes , we can.
Q13. Can we come to China visit factory ?
Yes ,you can .
Q14. Can you cut into small size?
Yes, we can.
Q16. How to save after the box opened?
Keep the dry environment,and is better use it in 30days.
