Name: 0.05mm Thickness Copper Foil Strips , Mill Finish Battery Copper Foil Laminate
Brand: JIMA Copper
SKU: RCU001
Price: 22.00 USD
Availability: InStock

Ana sayfa Ürünler Yumuşak Bakır Folyo

0.05mm Thickness Copper Foil Strips , Mill Finish Battery Copper Foil Laminate

Ürün ayrıntıları:

Place of Origin:	China
Marka adı:	JIMA
Sertifika:	SGS, ISO,Reach, RoHS，CQC
Model Number:	RCU001

Ödeme & teslimat koşulları:

Minimum Order Quantity:	500Kg
Fiyat:	Negotiations
Packaging Details:	Wooden carton
Delivery Time:	7-15 days
Supply Ability:	500 Ton per month

İletişim

Detaylı ürün tanımı

thickness:	0.05mm	temper:	O，soft
inner diameter:	40mm，76m，152mm	width:	2mm-400mm
color:	red copper	Grade:	C1100/C1020/C1220
Cu（Min):	99.95%	standard:	GB/T18813-2002，GB/T5231-2001
Surface:	mill finish
Vurgulamak:	expanded copper foil , soft copper sheet

0.05mm thickness C1100 SOFT O temper copper foil for battery production

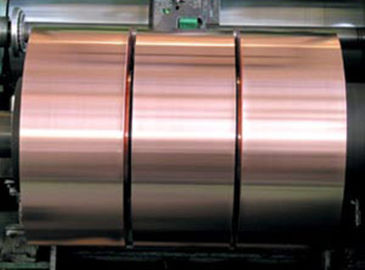

0.05mm Thickness Copper Foil Strips , Mill Finish Battery Copper Foil Laminate 0

0.05mm Thickness Copper Foil Strips , Mill Finish Battery Copper Foil Laminate 1

Quick Details

applicatiom:C1100 SOFT copper foil for battery production

thickness:0.05mm

width:2mm-400mm

material:red copper

grade:C1100/C1020/C1220

Conductivity(20C):min98.20%IACS

Cu(Min):99.95%

Vickers hardness:45-65

shape:thin copper foil

temper:soft

standard:GB/T18813-2002,GB/T5231-2001

Pacakge:wooden pallets,corrugated paper,paper angle protector

MOQ:500KGS

Surface:mill finish

Copper Copper Foil Size And Tolerance (mm)

Thickness	Thickness Tolerance	Width	Width Tolerance
0.01~0.015	± 0.002	5 ~ 610	± 0.1
0.018~0.10	± 0.003	5 ~ 610
0.10~0.50	± 0.005	5 ~ 610

Copper Copper Foil Physical Property

1. Density: 8.9g/cm3
2. Electrical conductivity (20°C): min 90%IACS for annealed to temper
3. min 80%IACS for rolled to temper
4. Thermal conductivity (20°C): 610W/(m°C)
5. Elastic modulus: 118000N/m
6. Softening temperature: ≥380°C

Chemical Composition

C1100 Copper foil Chemical composition(%)
Element	Cu+Ag	Sn	Zn	Pb	Ni	Fe	As	O
Standard Value	≥99.90	≤0.002	≤0.005	≤0.005	≤0.005	≤0.005	≤0.002	≤0.06

Copper Copper Foil Applicantion

1. Widely used for copper foil for transformers,

2. digital cameras, cell phones, DVD, HVD precision electronic products,

3. computer communications, wires, cables,

4. high-frequency transmission, isolation, electromagnetic interference.

5 Circuit turns the path,

6. because of excellent electrical conductivity of copper, used for low attenuation requirements, performance is better than copper foil mylar and other high-frequency attenuation: 10-25GHz.

Package :wooden pallet

0.05mm Thickness Copper Foil Strips , Mill Finish Battery Copper Foil Laminate 2

RFQ:

Q1. What's imformation do you need before quote?

A: yes,Temper,width,thickness, and order quantity

Q2: what is your minimum order quantity?

A: Yes,500kgs

Q3: what is your deliver time ?

A: 7-15days

Q4: what is your normal warranty period?

A:12months

Q5: are you manufacturer or trading company ?
